Seemingly minor ideas and suggestions can sometimes have a major impact:
REGATRON’s Field Application Engineers have reported that, particularly in the ‘testing and qualification’ sector, a significant amount of time is spent on wiring and connecting the DUTs. That is why for example REGATRON’s Turnkey Charger test systems are now offered with pre-assembled connection panels featuring a wide range of worldwide used socket types. Each socket can be switched whether individually by hand with selector buttons or via interface connected to an automation system. Simply plug in and start and forget about time-consuming and error-prone wiring.

Key Points

In addition to offering comprehensive testing capabilities for a wide variety of vehicle chargers, the ‘Turnkey Charger Test Systems’ feature a selection of sockets used worldwide. Each connection is activated at the touch of a button and also takes into account the country-specific mains frequency and voltage!

Visit Our Contact and Inquiry Page

At a Glance

Includes various country-specific sockets and spare slots
Manual selection of sockets with the appropriate voltage and frequency for laboratory operation
Alternative control via an automation system for test bench operation using common fieldbus interfaces such as CAN, EtherCAT or Profinet

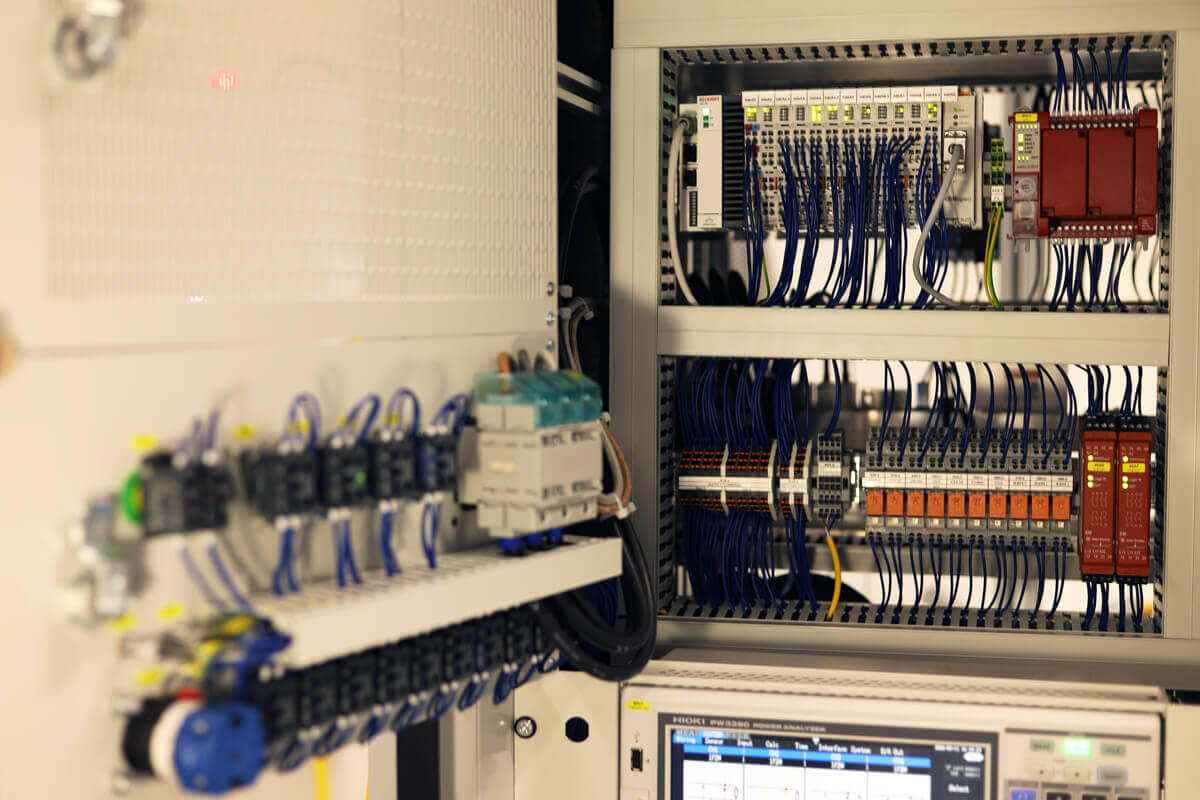

Beckhoff PLC components control the 4-Q power supply unit, the contactors including mutual safety interlocking, as also selector switches and various status lights
Safety circuit and interfaces in accordance with ISO 13849 PL e
Efficiency measurement with integrated power analyser and current sensors
System with a connection cable for mains power supply and on castors for mobile use

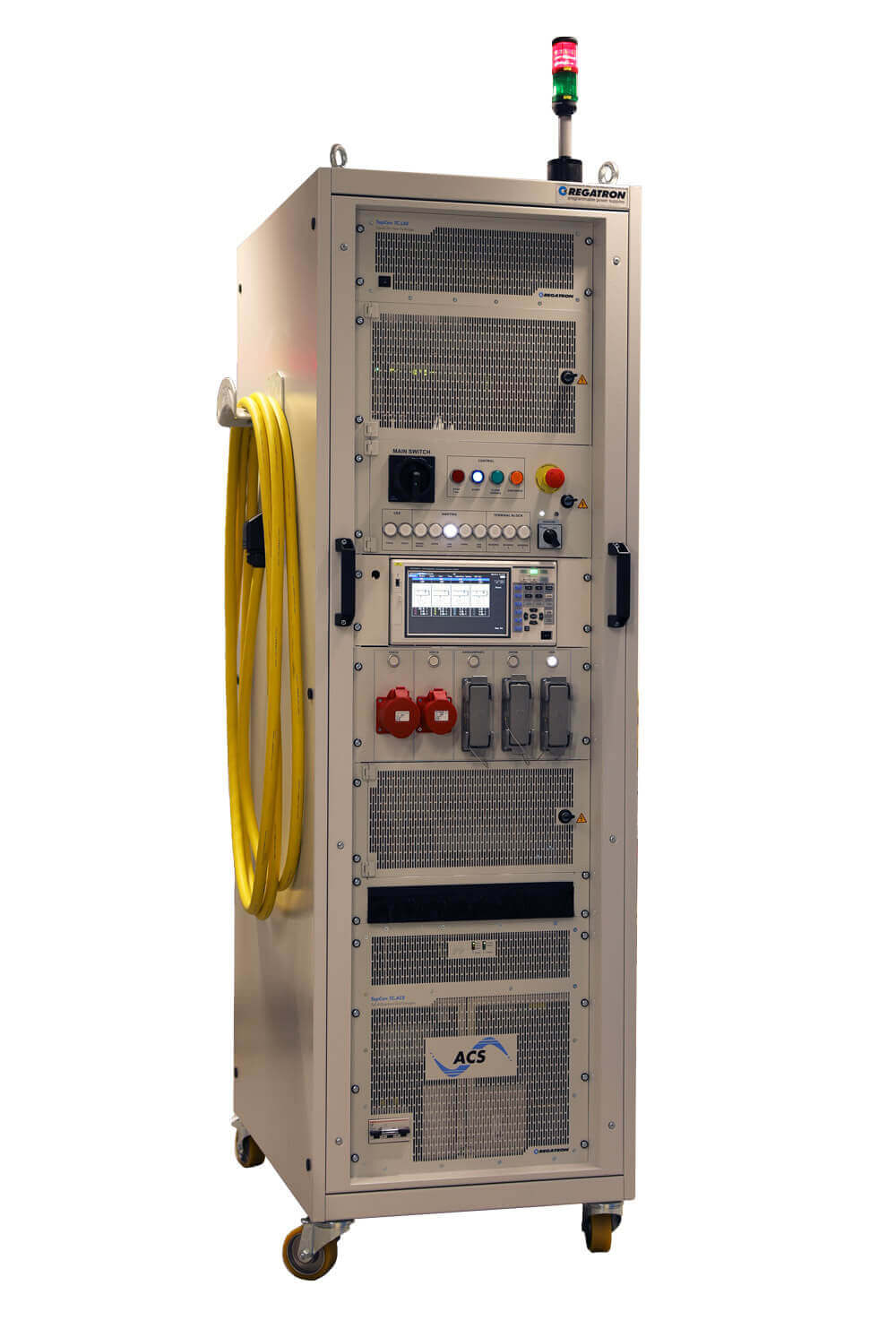

Application Example: The Test Features of the REGATRON 30/50 kVA OBC Charger Tester

The REGATRON Turnkey Concept is particularly effective for test equipment used with products sold internationally. The time saved by simply selecting the appropriate power socket is remarkable, as is the automatically correct mains voltage and frequency. See the following use cases of a OBC tester:

Testing of on-board chargers (OBC) for vehicles according to the globally applicable standards: Worldwide harmonized Light vehicle Test Procedure (WLTP)
Testing of the energy consumption of vehicles according to country-specific guidelines
Testing the energy behaviour in exceptional conditions, such as wintertime temperatures
Connection of the test set-up to an already existing test automation level for fully automated procedures by means of the REGATRON TC.ACS.CANmp interface
Country-specific tests of electrical appliances manufactured in different country versions
