Options and Functions for the G5.IND Series

The CAN multi-protocol (CANmp) interface has a 1 kHz data rate, a 16-bit resolution, and is adaptable to any proprietary CAN bus. In addition, it supports dbc file handling.

Order Code: CANmp

The EtherCAT slave interface (ECAT) supports configuration by ESI file and communicates in a 1 kHz cycle. It transmits the entire process data in the same cycle, i.e. commands, actual states, and actual values. Acyclic communication via mailbox for device configuration is also possible.

Order Code: ECAT

SCPI, Standard Commands for Programmable Instruments, are ASCII s trings, which are sent to the device over TCP/IP using the LAN socket. They can perform set operations or query operations.

Order Code: SCPI

The integrated WebAPI (REST) controller allows convenient operation of the power supply via the WebAPI (REST) interface.

Order Code: WebAPI

Integrated safety relay (ISR) for increased emergency stop reliability, supporting performance level PL c / PL e according to EN ISO 13849.

Order Code: ISR

Discharging of the AC filter (XCD), is mandatory when using the device with a plug connection. XCD ensures a discharge time of the AC filter less than 1 s as required by EN 62477-1

Order Code: XCD

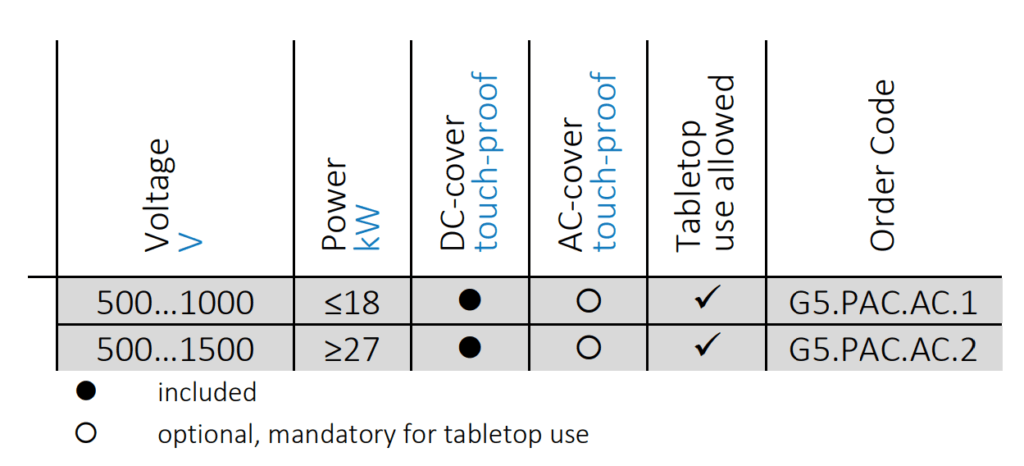

The different protective covers are designed for integration into 19″ rack systems or for use as a tabletop device. The cover for cabinet integration provides protection against accidental contact, whereas the cover for the tabletop version requires touch-proof protection in accordance with standard EN 62477-1.

Order Code: PAC

Front panel mounted air filter (AirFilter), recommended for use in dusty environments and with IP20 cabinets

Order Code: Airfilter

  • Mobile rack solutions on castors up to 162 kW
  • Stationary rack solutions up to 324 kW
  • IP54 protection for air or liquid-cooled systems
  • Third-party product integration and numerous safety options
  • Insulation monitoring integrated into safety circuit; activation and settings on display
  • Easy reconfiguration between parallel or single operation
powersupply-dc-power-g5-rack-integrated-system-solution

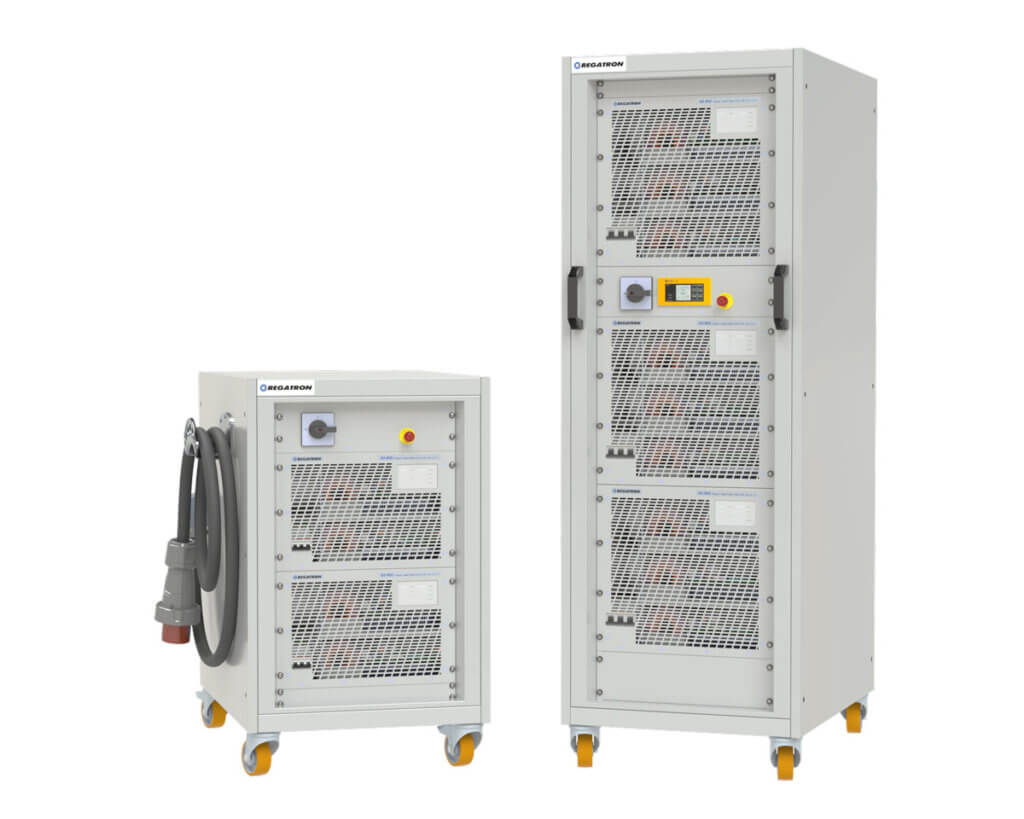

REGATRON’s rack-integrated turn-key system solutions for various power levels e.g. 72 kW (left) and 162 kW (right). Various options allow for comfortable handling.
