Preconfigured Cabinet-Solutions for Regatron Power Supplies
The following list of power, voltage and current values shows typical system configurations, each integrated into individual systems ranging from 32 to 128 kW. The list is non-exhaustive due to the versatile configuration capabilities of the GSS devices and allows for many other multiple and
single channel configurations. The demand of higher power and current level can be achieved by connecting the listed systems of the same voltage class in parallel up to 512 kW range. Power level >512 kW are available upon request.

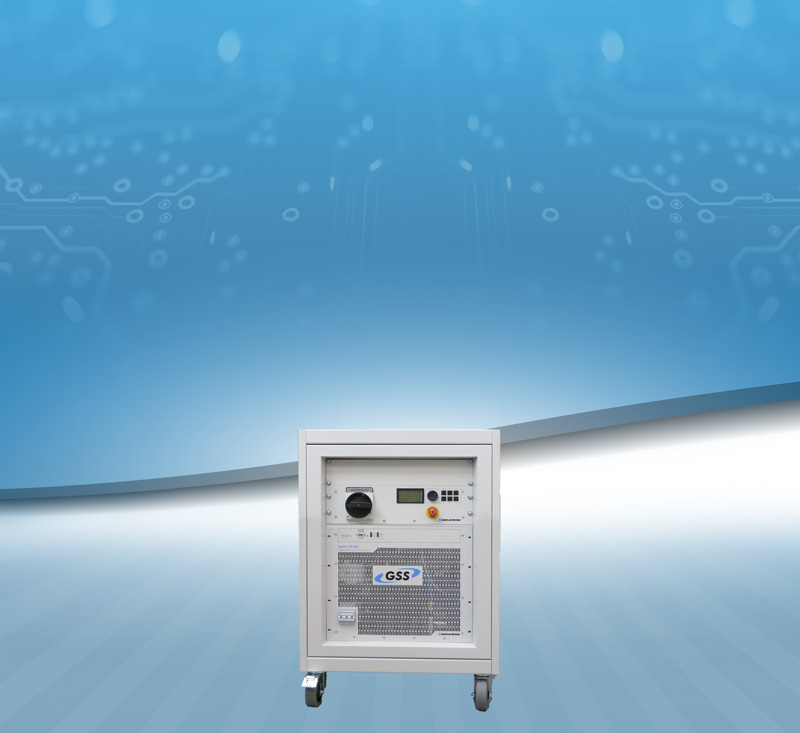

| 32 kW | 65 - 130 V | 308 - 600 A | Order Code | Power | Voltage | Current | Base Unit | Configuration |
|---|---|---|---|---|---|---|
|
|
TC.GSS.32.65.600 (*) | 32 kW | 65 V | 600 A | 32 kW / 65 V | Single |
| TC.GSS.32.130.308) | 32 kW | 130 V | 308 A | 32 kW / 130 V | Single | |
| (*)also as 60 V SELV version available | ||||||

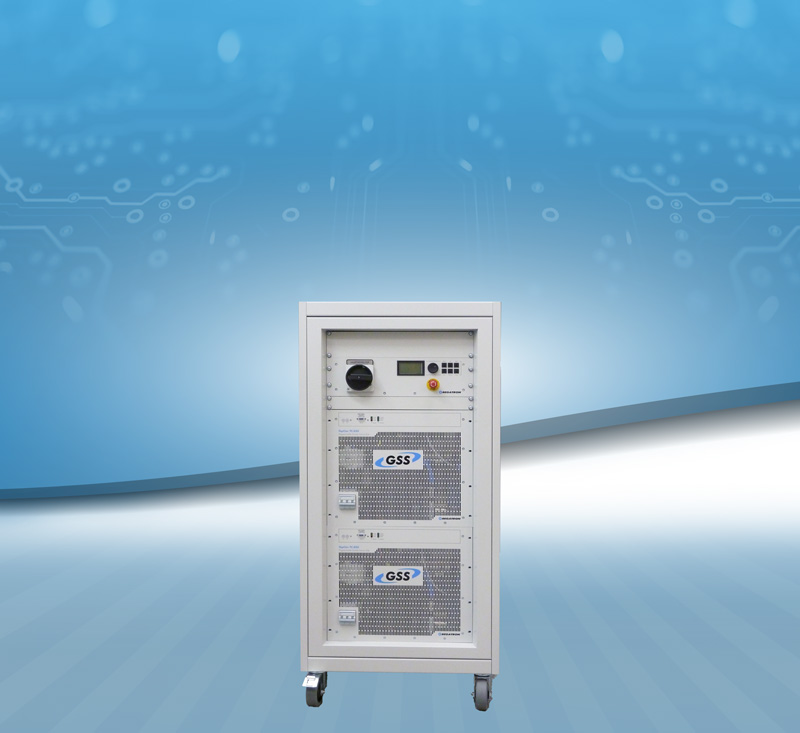

| 64 kW | 65 - 260 V | 308 - 1200 A | Order Code | Power | Voltage | Current | Base Unit | Configuration | |
|---|---|---|---|---|---|---|---|
|
|
TC.GSS.64.65.1200 (*) | 64 kW | 65 V | 1200 A | 32 kW / 65 V | Fixed Parallel | |
| TC.GSS.64.130.1200 | 64 kW | 65 V 130 V |
1200 600 A |
32 kW / 65 V | Parallel Series |
||
| TC.GSS.64.130.616 | 64 kW | 130 V | 616 A | 32 kW / 130 V | Fixed Parallel | ||
| TC.GSS.64.260.616 | 64 kW | 130 V 260 V |
616 A 308 A |
32 kW / 130 V | Parallel Series |
||
| (*)also as 60 V SELV version available | |||||||

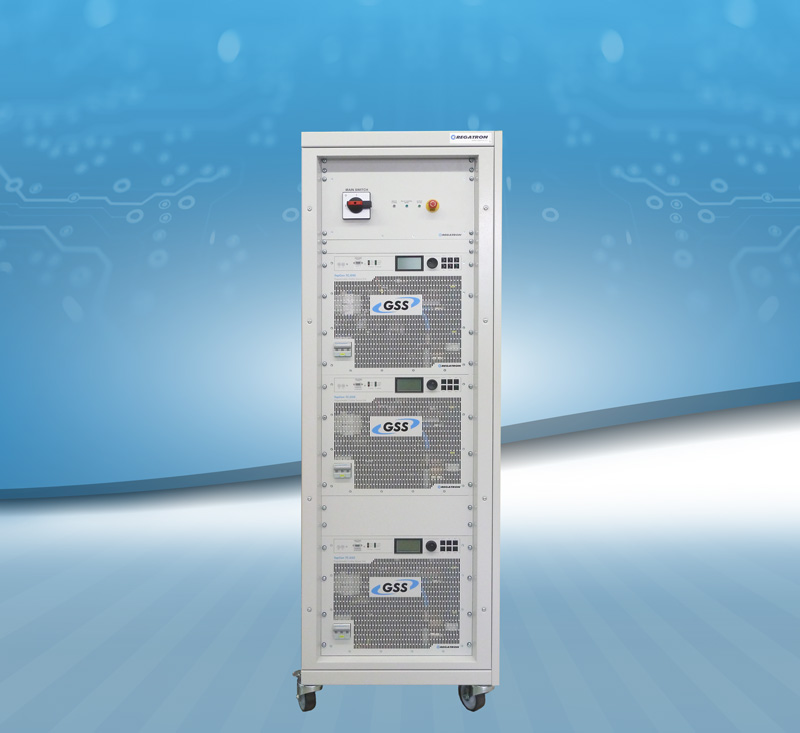

| 96 kW | 65 - 390 V | 308 - 1800 A | Order Code | Power | Voltage | Current | Base Unit | Configuration | |
|---|---|---|---|---|---|---|---|
|
|
TC.GSS.96.65.1800 (*) | 96 kW | 65 V | 1800 A | 32 kW / 65 V | Fixed Parallel | |
| TC.GSS.96.195.1800 | 96 kW | 65 V 195 V |
1200 A 600 A |
32 kW / 65 V | Parallel Series |
||
| TC.GSS.96.130.924 | 96 kW | 130 V | 924 A | 32 kW / 130 V | Fixed Parallel | ||
| TC.GSS.96.390.924 | 96 kW | 130 V 390 V |
924 A 308 A |
32 kW / 130 V | Parallel Series |
||
| (*)also as 60 V SELV version available | |||||||

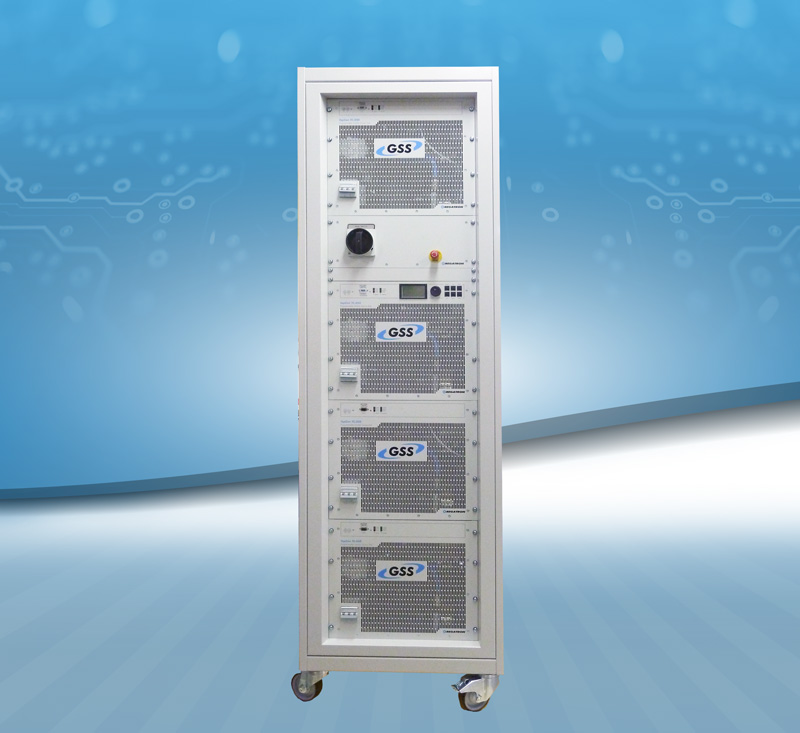

| 128 kW | 65 - 520 V | 308 - 2400 A | Order Code | Power | Voltage | Current | Base Unit | Configuration | |
|---|---|---|---|---|---|---|---|
|
|
TC.GSS.128.65.2400 (*) | 128 kW | 65 V | 2400 A | 32 kW / 65 V | Fixed Parallel | |
| TC.GSS.128.260.2400 | 128 kW | 65 V 130 V 260 V |
2400 A 1200 A 600 A |
32 kW / 65 V | Parallel Matrix Series |
||
| TC.GSS.128.130.1232 | 128 kW | 130 V | 1232 A | 32 kW / 130 V | Fixed Parallel | ||
| TC.GSS.128.520.1232 | 128 kW | 130 V 260 V 520 |
1232 A 616 A 308 A |
32 kW / 130 V | Parallel Matrix Series |
||
| (*)also as 60 V SELV version available | |||||||
